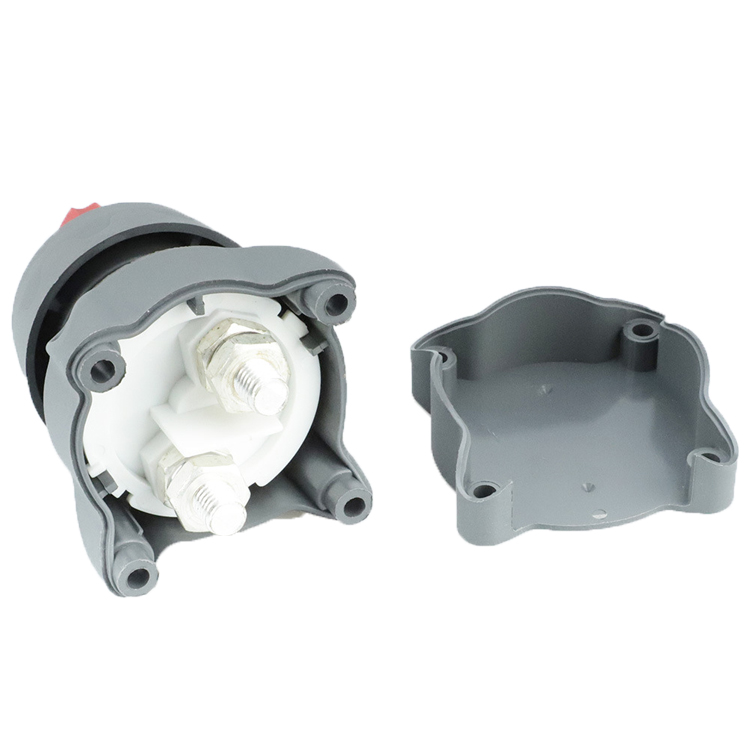

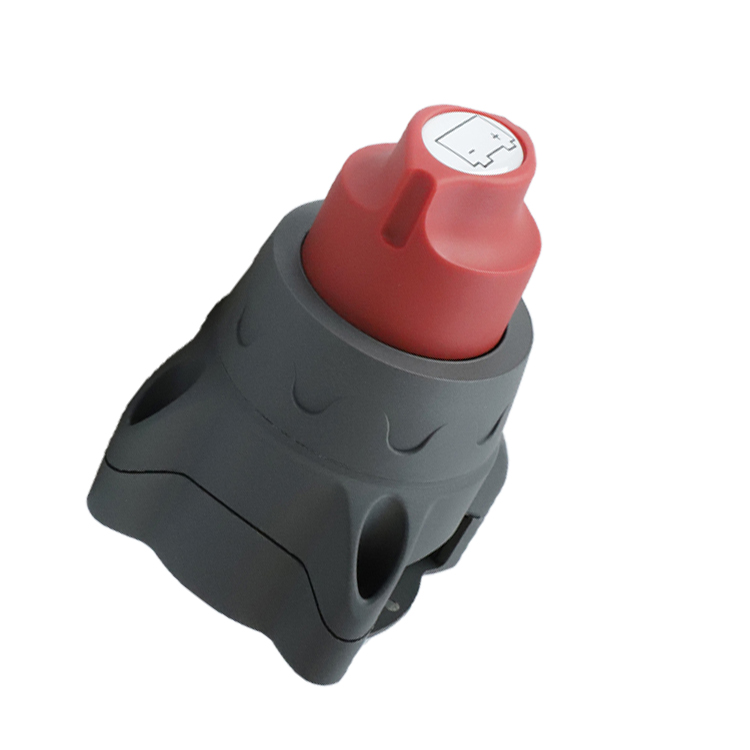

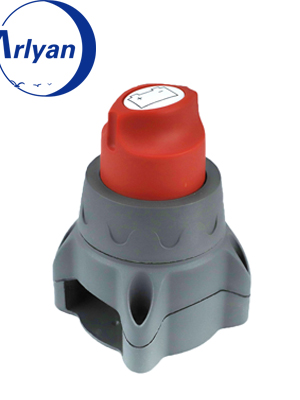

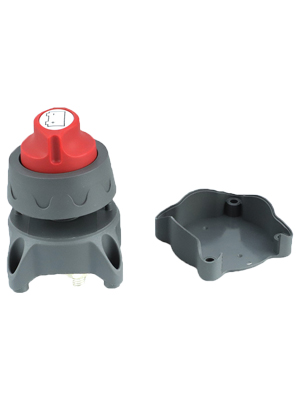

48V 60V DC High Current Power Switch Yacht Battery Isolation Switch Rotary Disconnect Switches
DETAIL
| Continuous current | 275Amps DC |
| Intermittent current | 350Amps DC |
| Starting current | 1250Amps DC |
| Maximum voltage | 48V-60Volts DC |
| Contact resistance | 50M |
| Insulation resistance | 100M |
| Dielectric strength | 1500VAC/1min |
| Electrical life | 10000 times |
| Screw specification | M10 |
Screw material: copper plated with silver
Nut material: brass silver plated
Gasket material: copper
