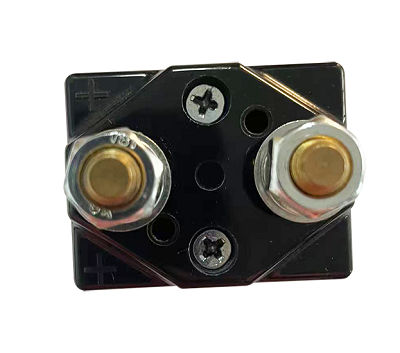

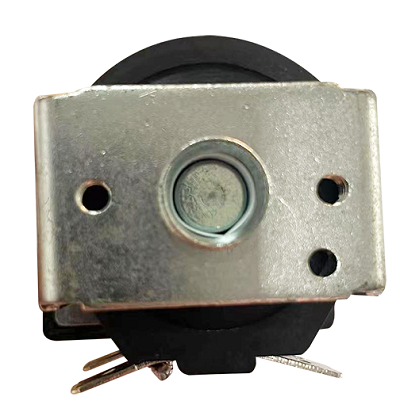

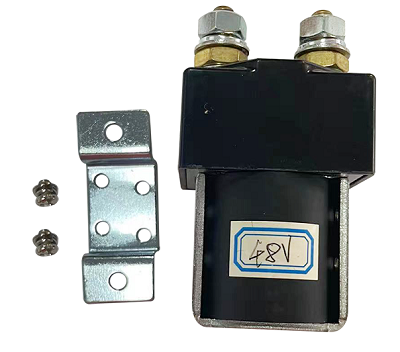

Hot sale DC Contactor 48V for electronic forklift train construction machinery vehilces

model ARL-SW-80M/48

contact form A set of magnetic retention

Contact material Silver alloy

Contact load (resistive load) 125A×60VDC（DC-1）

Contact pressure drop ≤80mV@125A

insulation resistance Min. 100MΩ at 500VDC

Dielectric Strength 1000VAC 50 HZ/60 HZ (1 minute) Leakage current less than 1mA

pulse width 0.5S～1S

Pull in time /

Release time /

pull-in voltage (DC V) 20～80% US

Release voltage (DC V) 20～80% US

Operating

ambient temperature -25℃~+60℃

Storage temperature -40℃~+65℃

relative humidity 20%~90% RH

Mechanical life ≥150,000 次

Auxiliary switch 5A/24V DC;2A/48V DC

Minimum load of auxiliary contact 100mA/5V

class of pollution III

Working system Continuous working system

Vibration （10～200）Hz     acceleration ≤3.5g

to attack （60） Times / minute    acceleration 6g
