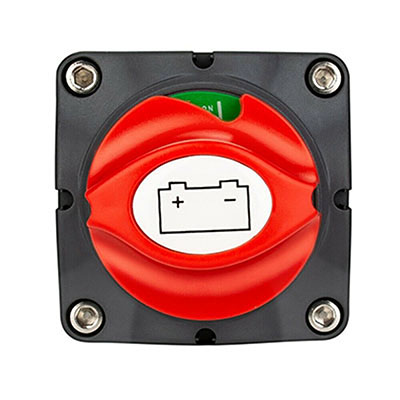

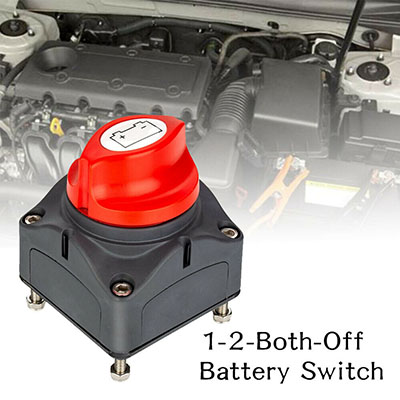

Hot Selling Contour Battery Master Selector Switch ON/OFF Operations

DETAIL

1. Continuous Rating: 50Amps 50VDC Max

2. Intermittent Rating: 75Amps

3. Cranking Rating: 300Amps 5sec

4. Contact Resistance: 50m ohm Max

5. Insulation: Resistance: DC 500V 100M ohm Min

6. Dielectric Strength: AC 1000V 1 minute, DC 2000V 1 minute

7. Operation Temperature: -30℃-+60℃

8. Switch Function: 2P SPST OFF-ON

9. Weight: 0.5kg/pcs

10. Package: carton 13.46cm x11,68cm x13.46cm(each)
