Emergency shut off switch

DETAIL

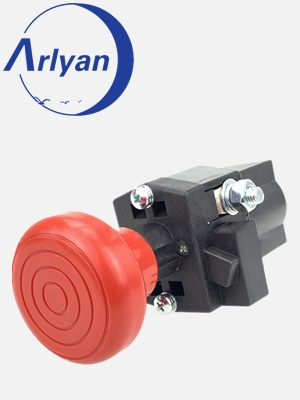

Forklift Parts Emergency Switch disconnect shut off switch

Part Number	ARL-JK200A-X
Rated voltage of contact circuit	200A 48V DC/ 200A 250V DC
Rated coil voltage(V DC)	6-240
Rated coil power(W)	≤15
Coil voltage of fluctuation range	±20%
Contact voltage drop(m V)	≤80
Maximum on-off capacity of main contact	1 time on-off. quadruple rated load current in 5ms
Insulation resistance(MΩ）	1
Puncture (volt) strength	1000V AC(effective value), 50HZ, 1 min, No flashover, breakdown
Electric life at rated voltage	6000(Test frequency: 6 times per min)
Mechanical life(cycles)	100,000
Working duty	Continuous
