Isolator Disconnect Rotary Switch
DETAIL

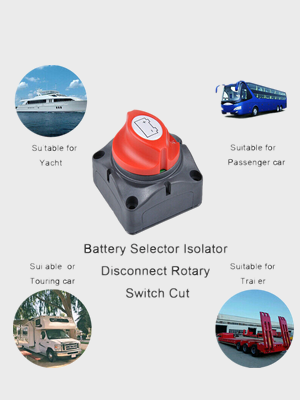

Car Boat Battery Selector Isolator Disconnect Rotary Switch
| Product material: | plastic + copper tin plating |
| Continuous current | 275Amps DC |
| Intermittent current | 350Amps DC |
| Starting current | 1250Amps DC |
| Rated current | 200Amps DC |
| Maximum voltage | 48V-60Volts DC |
| Dielectric strength | 1500VAC / 1min |
| Electrical life | 10000 times |
| Product operation | On / Off |
| Installation | behind / surface |
| Terminal bolt size | 2 x 10 mm (10MM diameter copper legs |
